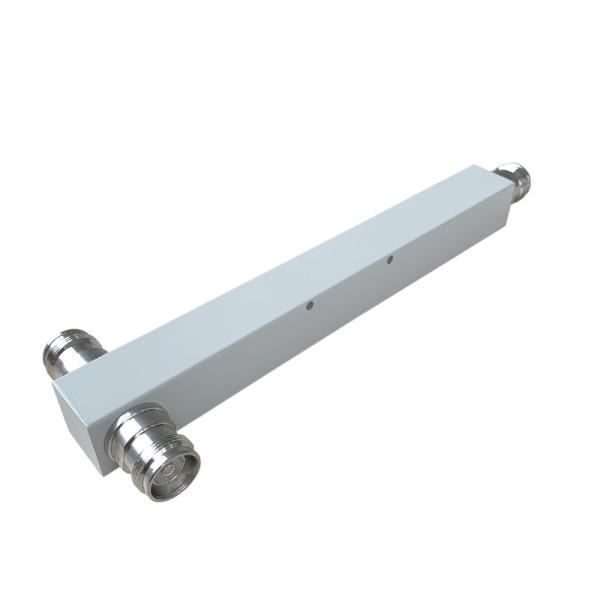

550-6000MHz 2 Way 4.3-10 Female Power Splitter

Product Categories

HeFei Vinncom Electronic Technology Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 5506000MHz 2 Way 4310 Female Power Splitter
Brand: Vinncom
Price: 1 USD

Brand Name : Vinncom

Model Number : VN-PS-05560-OP2

Certification : ROHS ISO9000

Place of Origin : China

MOQ : 5 pcs

Price : Negotiable

Payment Terms : D/A, L/C, D/P, T/T

Frequency : 550-6000MHz 600-6000MHz

Connector : 4.3-10 Female

Color : Customized

OEM/ODM : Acceptable

Low PIM : -153dbc,-160dbc,-163dbc,-165dbc

Application : DAS IBS

ROHS : Compliance

Design : Wide Band

Contact Now

550 / 600-6000MHz 4.3-10 Female Mini Din Low PIM -165dbc 2 Way Reactive Power Splitter Divider For DAS IBS

Part Number	VN-PS-05560-OP2
Operating Frequency ( MHz )	550-6000
Impedance ( Ohm )	50
VSWR	≤1.3
Split Loss (dB)	≤3.5(smooth on test)
IM3 (dBc @ 2×43dBm)	-155/ -163
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Female
Handling Power (Watt, max)	500
Peak Power (Watt, max)	1500

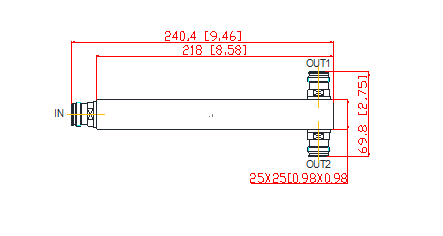

Dimension (mm)(L×W×H, excl connector)	218 × 25 × 25
Net Weight (g)	405 ± 20
Packing Dimensions (mm,L×W×H)	260 × 80 × 40
Packing Carton Size (mm,L×W×H)	540 × 420 × 140
ROHS Compliance	Yes
