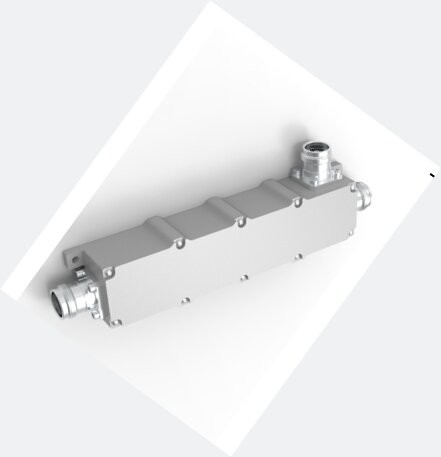

340/380-2700MHz 4.3-10 Female Directional Coupler

Brand Name : Vinncom

Model Number : VN-DC-03427-OPx-xxx

Certification : ISO 9000 ROHS

Place of Origin : China

MOQ : 5 PCS

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T

Connector Type : 4.3-10 Female

Coupling : 5,7,8,10,15dB

Frequency Range : 340-2700MGHz

Impedance : 50 Ohm

Manufacturer : Mini-Circuits

Mounting Type : Surface Mount

Operating Temperature : -55 to +85°C

Package Type : Surface Mount

RoHS Compliant : Yes

Size : 178.5 × 46× 33

Storage Temperature : -40 to +85°C

VSWR : 1.2:1

Connector Finish : Grey

Connector Gender : 4.3-10 Female

Dimensions : 0.5 x 0.5 x 0.3

Insertion Loss : 0.5dB

Package Shape : Rectangular

Product Type : RF Directional Coupler

Contact Now

340/380-2700MHz 4.3-10 Female Directional Coupler

  • High isolation
  • Low PIM -160dBc@43dBm*2
  • Portable for installation

VN-DC-03427-OPx-xxx.pdf

Part Number VN-DC-03427-OPx-xxx
Operating Frequency ( MHz ) 340-2700MHz
Impedance ( Ohm ) 50
VSWR ≤1.25
Coupling (dB)@x 5 ± 1.3 6 ± 1.3 7 ± 1.3 8± 1.5 10± 1.5 13 ± 1.5 15 ± 1.5 20 ± 1.7
Insertion Loss (dB) ≤2.4 ≤1.9 ≤1.6 ≤1.2 ≤.0.8 ≤0.5 ≤0.4 ≤0.3
Isolation (dB) ≥25 ≥26 ≥27 ≥28 ≥30 ≥33 ≥35 ≥40
IM3 (dBc @ 2×43dBm)@xxx -160
Application Indoor/Outdoor
Degree of Protection IP67
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Female
Handling Power (Watt, max) 300
Peak Power 1200 (Watt, max)

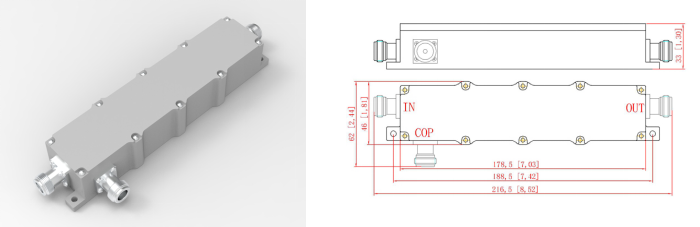

Dimension (mm) 178.5 × 46× 33
Net Weight (g) 700± 5%
Packing Dimensions (mm) 240 × 80 × 35
Packing Carton Size (mm) 500 × 420 × 160
ROHS Compliance Yes

340/380-2700MHz 4.3-10 Female Directional Coupler


Product Tags:

2700MHz Directional Coupler



Female Directional Coupler



Female RF Directional Coupler


China 340/380-2700MHz 4.3-10 Female Directional Coupler wholesale

340/380-2700MHz 4.3-10 Female Directional Coupler Images
